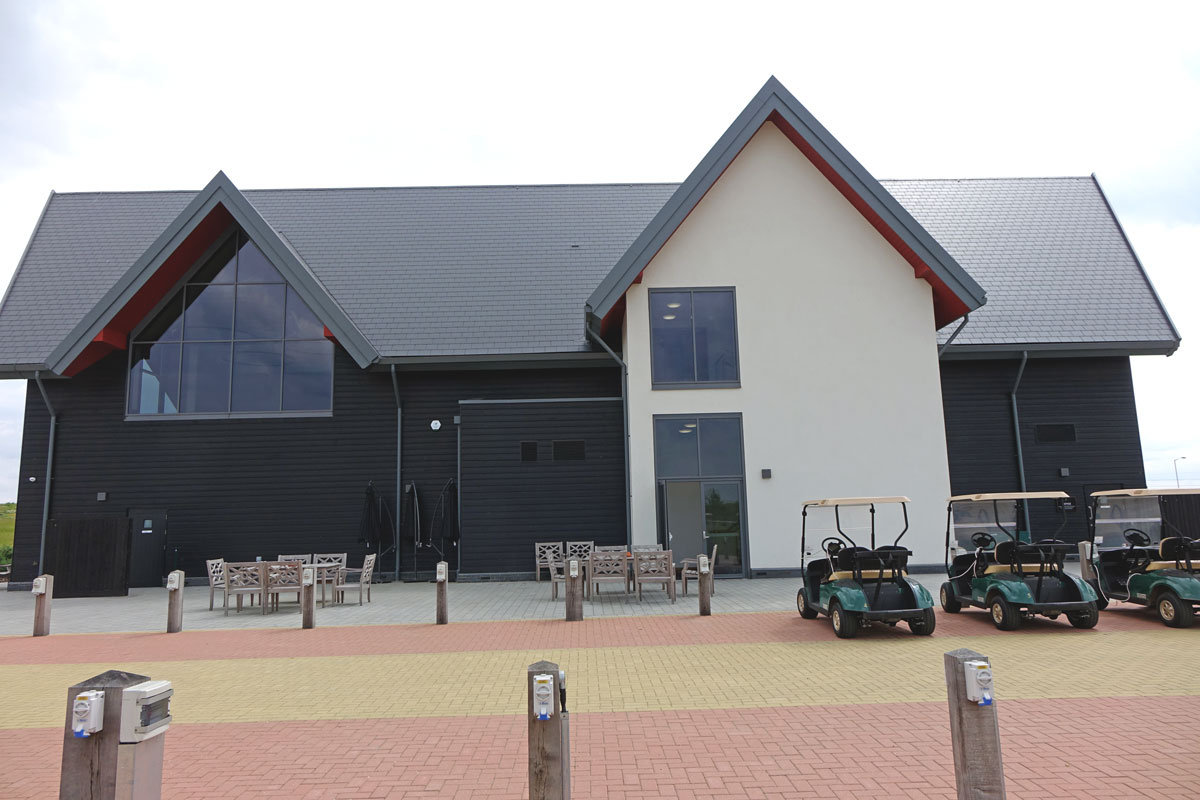

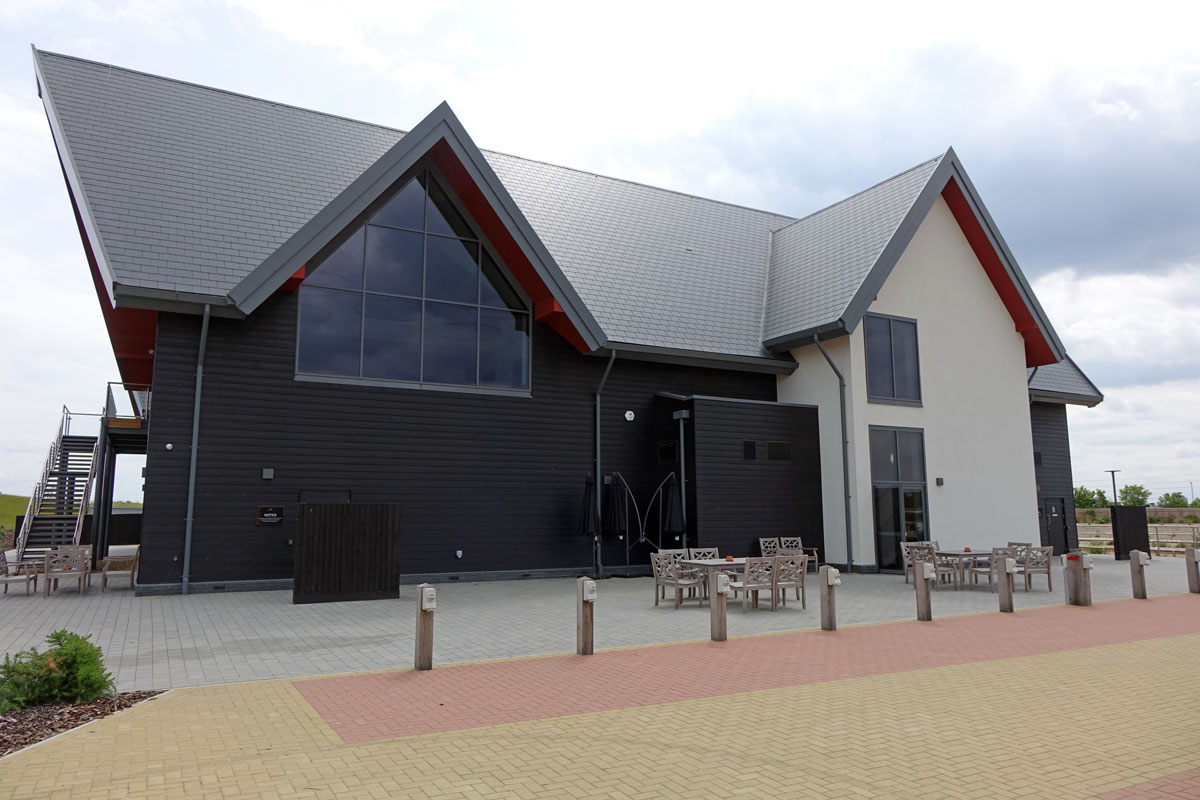

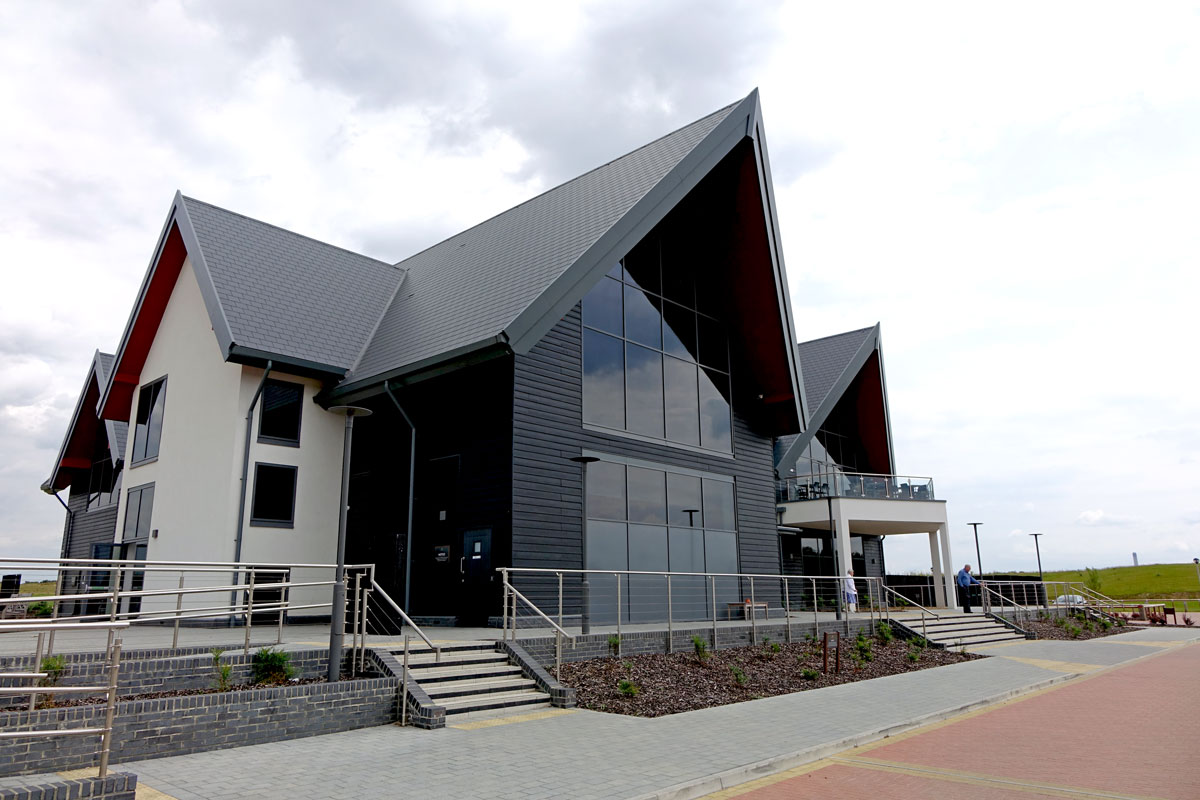

Ingrebourne Golf & Country Club, Rainham, Essex

Comar Architectural Aluminium Systems, with their approved fabricator Anglia Fixing completed a new build clubhouse for the Ingrebourne Golf & Country Club in Essex. This state of the art building is vibrant and modern and now offers full health club facilities and services the spectacular inland golf course.

To maximise natural daylight and facilitate the large glazed areas Comar 6EFT was specified as it offers architects a flexible system, providing a structurally glazed solution, with options for facets, concealed vents and an extensive range of profiles that cater for large structurally glazed panes. Comar 6EFT also offers the slimmest silicon or EPDM joints in the industry, which means the eye catching glazed area is maximised complying with the latest CWCT standards Comar 6EFT systems are mullion drained thermally broken structurally glazed curtain walling system with drained capping, pressure equalised and drained is in accordance with BS6262.

Comar 7P.i Commercial Door sets were the natural choice for this busy high traffic recreational leisure building. Comar 7P.i CD door sets can be hung directly from Comar 6EFT framing and are available in swing, pivot, sliding, auto-sliding and sliding folding options.

Comar 9P.i High Performance Window, Doors & Framing, offers a truly integrated solution with low U-values and fast-track fabrication & installation. Comar 9P.i is a 80mm, 100mm, 120mm mitre or ladder frame system and exceeds the requirements of BS 6375, achieving 600Pa Air, 600Pa Water at 2400Pa Resistance to Wind Load.

Comar approved fabricators are required to have the technical expertise to attend pre-site meetings and provide detailing and Anglia Fixing LLtd liaised closely with the specifiers to provide design advice.
